McMillan’s SCANDIUM Series Vortex Flow Meter is a compact, reliable, and cost-effective solution for monitoring low viscosity liquids. Operating on the naturally occurring phenomenon know as vortex shedding, this meter achieves stable and accurate performance without the use of moving parts, ensuring minimal maintenance. With options for frequency and analog outputs, it serves as an ideal choice for measuring various fluids, including aggressive, and high-purity solutions. Its compact design makes it particularly advantageous for installations where space is at a premium. The SCANDIUM Series Vortex Flow Meter is a versatile solution for many different industrial applications.
McMillan’s SCANDIUM Series Vortex Flow Meter is a compact, reliable, and cost-effective solution for monitoring low viscosity liquids. Operating on the naturally occurring phenomenon know as vortex shedding, this meter achieves stable and accurate performance without the use of moving parts, ensuring minimal maintenance. With options for frequency and analog outputs, it serves as an ideal choice for measuring various fluids, including aggressive, and high-purity solutions. Its compact design makes it particularly advantageous for installations where space is at a premium. The SCANDIUM Series Vortex Flow Meter is a versatile solution for many different industrial applications.
The SCANDIUM Series flow meter can support ranges as low as 0.5 – 4.5 L/min and as high as 3.2 – 22.0 L/min.
Options for frequency pulse or analog 4-20 mA are available.
All units come standard with a 4-Pin Micro DC connection.
The SCANDIUM’s accuracy is ± 2.5% of full scale with ± 1% F.S. repeatability.
Range 4.5L units come with 1/4” FNPT ports.
Range 10L | 22L units come with 3/8” FNPT ports.
Options for various tube connections in several materials are available.
All units feature an integrated mounting bracket.
FITTING PORTS

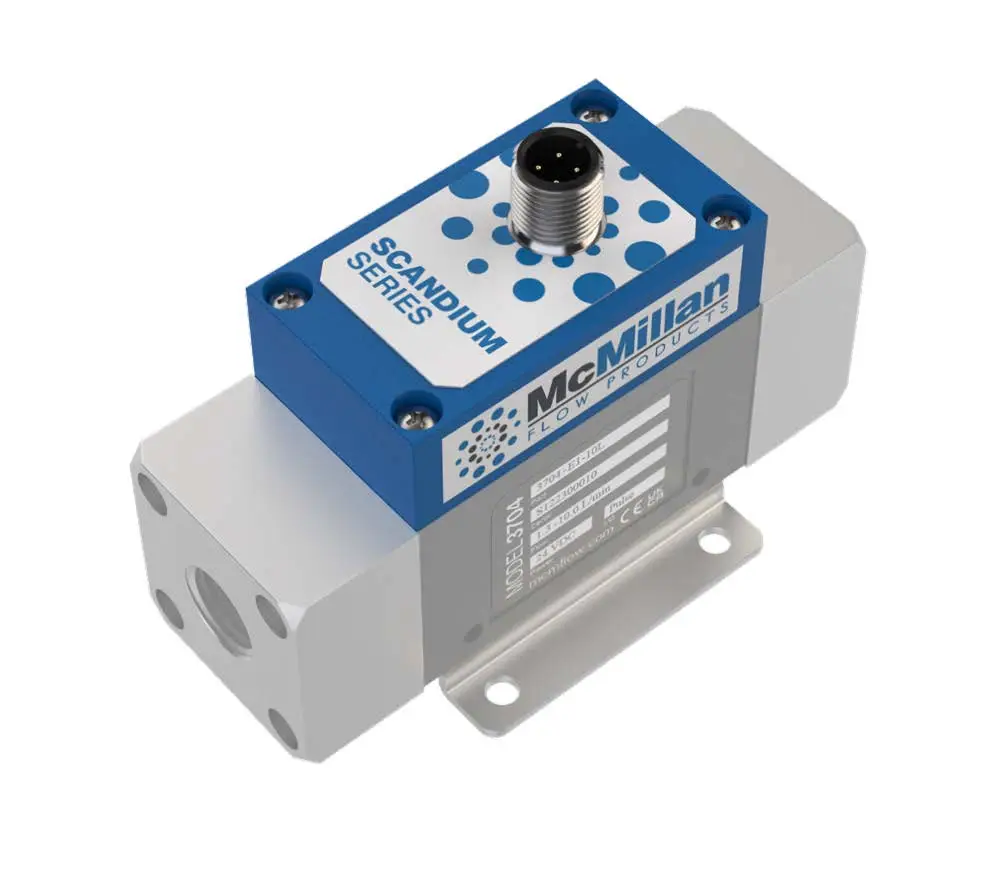

ELECTRICAL CONNECTION

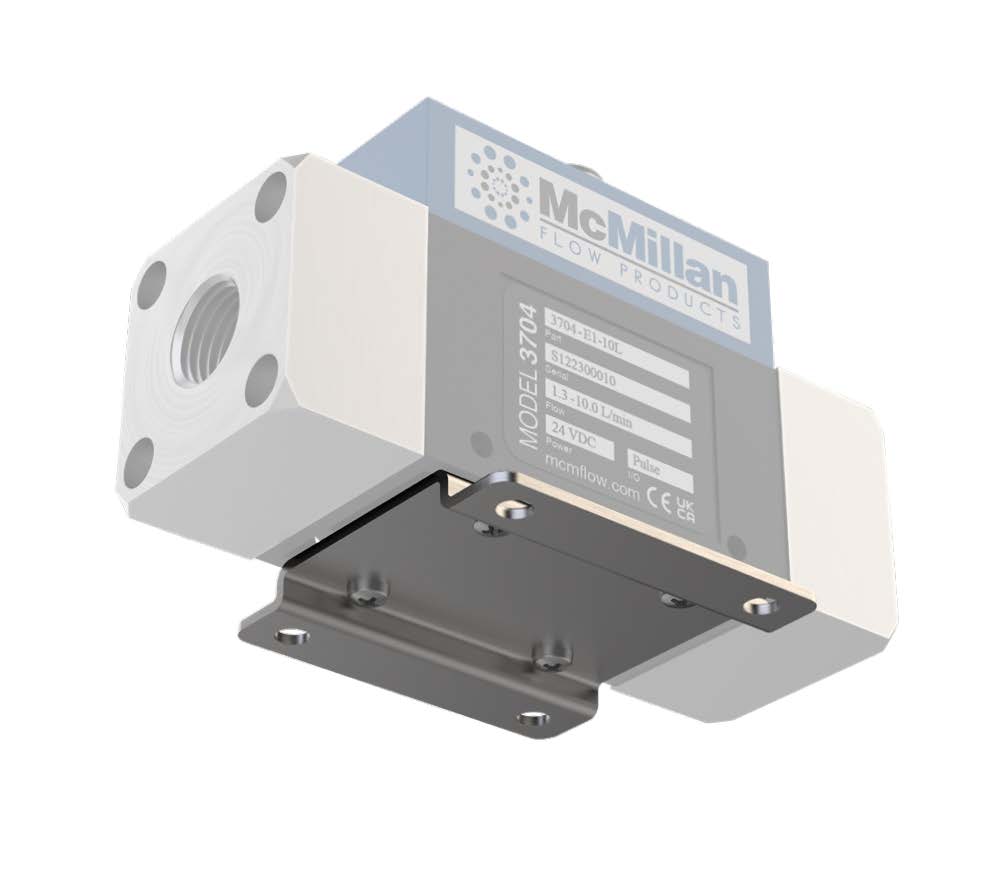

MOUNTING BRACKET

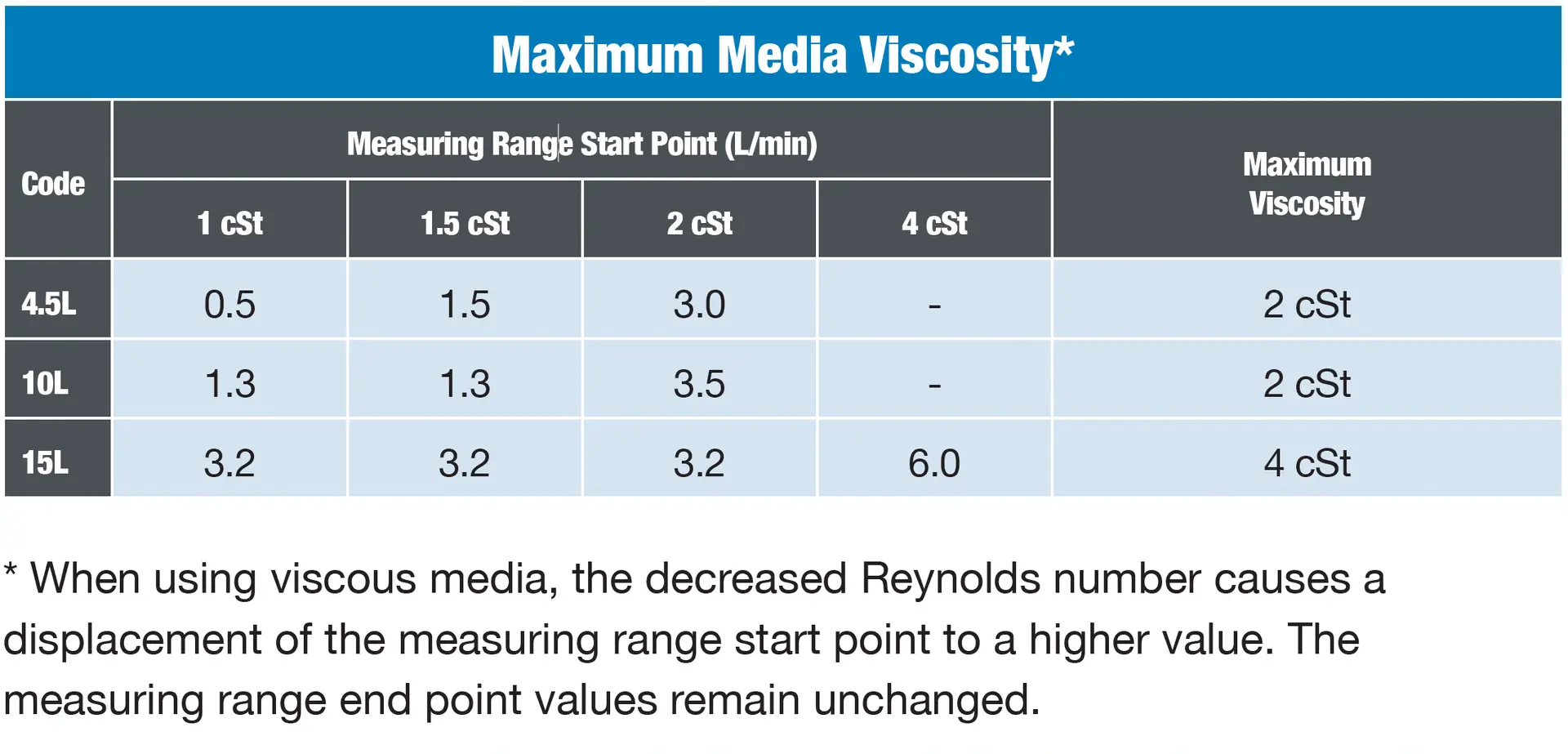

MAXIMUM MEDIA VISCOSITY CHART
± 2.5% of full scale
± 1.0% of full scale
1 second (at flow changes > 10%)
10x diameter upstream
2x diameter downstream
32 to 176 °F [ 0 to 80 °C ]
14 to 140 °F [ -10 to 60 °C ]
145 psig [ 10 barg ]
3.6 psig [ 0.25 barg ] at 100% rated flow
Sensor Housing: PPS
Sensing Diaphragm: PVDF
Bluff Body: PPS
Seals: FKM
Fittings: 316 SS
Output
4-20 mA, 3-wire
Max Load
500 Ohms
Power Supply
24 VDC ± 20%
Electrical Connection
Micro-DC, 4-pin Male
Electrical Protection
IP 65
Output
PNP Open Collector, max. 200 mA
Frequency
500 Hz at full scale
Power Supply
24 VDC ± 20%
Electrical Connection
Micro-DC, 4-pin Male
Electrical Protection
IP 65
| Categories | Title | Summary | File Size | Download |
|---|---|---|---|---|
| Data Sheets (PDF) | SCANDIUM_DS-37X 2402 A.1 | Latest data sheet for the SCANDIUM Series | 2 MB |
